T-pad Attenuator: Symmetrical Resistive Networks

Introduction to the T-pad Attenuator

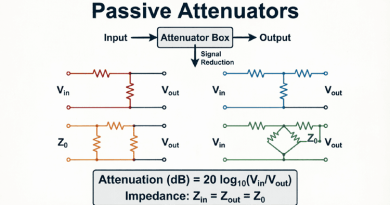

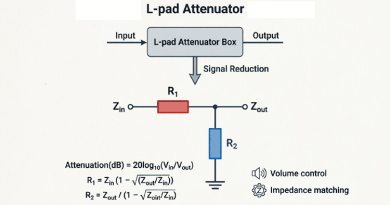

While the L-pad attenuator is excellent for matching unequal impedances, it suffers from a major limitation: it is asymmetrical. If you reverse the input and output ports of an L-pad, the impedance matching is destroyed. In many RF, audio, and test equipment applications, signals must be able to flow in both directions, or the attenuator must present the exact same impedance to both the source and the load. This requirement calls for a symmetrical attenuator, and the most common topology for this is the T-pad attenuator.

A T-pad attenuator is a passive resistive network consisting of three resistors arranged in the shape of the letter “T”. It is designed to provide a specific amount of signal attenuation (in decibels) while maintaining a constant, matched characteristic impedance ($Z_0$) at both its input and output ports. Because of its symmetrical design, the T-pad is bilateral, meaning it can be inserted into a circuit in either direction without affecting its performance.

T-pad attenuators are ubiquitous in electronics. They are found inside RF test equipment, audio mixing consoles, telecommunications gear, and broadband measurement setups. Understanding how to design and implement a T-pad is a fundamental skill for any engineer working with signal chains.

What is a T-pad Attenuator?
A T-pad attenuator is a symmetrical, bilateral passive network made of three resistors (two series, one shunt) arranged in a “T” shape. It is designed to reduce signal amplitude by a specific decibel (dB) amount while maintaining the exact same characteristic impedance (e.g., 50Ω or 75Ω) at both the input and output ports.

Structure and Operation of the T-pad

The name “T-pad” comes from the physical layout of its three resistors, which resembles an inverted letter “T” (or a standard “T” if drawn with the shunt resistor pointing downward to ground).

The Three Resistors

1. Input Series Resistor ($R_1$): Placed in series with the input signal path. It drops the initial voltage and sets the input impedance.
2. Output Series Resistor ($R_3$): Placed in series with the output signal path. In a symmetrical T-pad, $R_3$ is exactly equal to $R_1$.
3. Shunt Resistor ($R_2$): Placed in parallel (shunt) between the signal line and ground, exactly between the two series resistors. It diverts current to ground, completing the voltage division.

Bilateral Symmetry

The defining feature of the symmetrical T-pad is its bilateral nature. If you terminate the output port with the characteristic impedance ($Z_0$), the impedance looking into the input port will also be exactly $Z_0$. Conversely, if you drive the output port and terminate the input port with $Z_0$, the output impedance will also be $Z_0$.

This symmetry is crucial in RF systems where transmission lines are bidirectional, and in audio systems where line-level signals might be routed through complex switching matrices.

Design Formulas for the Symmetrical T-pad

Designing a symmetrical T-pad requires calculating the values of the series resistors ($R_1$ and $R_3$) and the shunt resistor ($R_2$) based on two parameters: the desired characteristic impedance ($Z_0$) and the desired attenuation in decibels ($A_{dB}$).

Step 1: Calculate the Attenuation Factor (K)

First, convert the desired attenuation from decibels to a linear voltage ratio ($K$):

$$K = 10^{\frac{A_{dB}}{20}}$$

Note: $K$ is always greater than 1 for an attenuator. For example, 6 dB attenuation yields $K \approx 2.0$, and 20 dB yields $K = 10.0$.

Step 2: Calculate the Resistor Values

Once $K$ is known, the resistor values for a symmetrical T-pad are calculated using the following standard formulas:

For the Series Resistors ($R_1$ and $R_3$):
$$R_1 = R_3 = Z_0 \left( \frac{K – 1}{K + 1} \right)$$

For the Shunt Resistor ($R_2$):
$$R_2 = Z_0 \left( \frac{2K}{K^2 – 1} \right)$$

These formulas guarantee that when the output is terminated in $Z_0$, the input impedance is exactly $Z_0$, and the voltage is reduced by the factor $K$.

Step-by-Step Practical Example

Let’s design a standard 50Ω, 10 dB symmetrical T-pad attenuator for an RF application.

Given:

• Characteristic Impedance ($Z_0$) = 50Ω
• Attenuation ($A_{dB}$) = 10 dB

Step 1: Calculate K
$$K = 10^{\frac{10}{20}} = 10^{0.5} \approx 3.162$$
$$K^2 \approx 10.0$$

Step 2: Calculate Series Resistors ($R_1$ and $R_3$)
$$R_1 = 50 \left( \frac{3.162 – 1}{3.162 + 1} \right)$$
$$R_1 = 50 \left( \frac{2.162}{4.162} \right)$$
$$R_1 = 50 \times 0.5195 \approx \mathbf{25.97 \Omega}$$

Step 3: Calculate Shunt Resistor ($R_2$)
$$R_2 = 50 \left( \frac{2 \times 3.162}{3.162^2 – 1} \right)$$
$$R_2 = 50 \left( \frac{6.324}{10.0 – 1} \right)$$
$$R_2 = 50 \left( \frac{6.324}{9.0} \right)$$
$$R_2 = 50 \times 0.7027 \approx \mathbf{35.14 \Omega}$$

Result:
To build a 50Ω, 10 dB T-pad, you need two 25.97Ω series resistors and one 35.14Ω shunt resistor. In practice, you would use the closest standard 1% tolerance resistor values (26.1Ω and 35.7Ω, or combine resistors to get closer to the exact values).

T-pad vs. Pi-pad: When to Use Which?

The T-pad has a sister topology called the Pi-pad (π-pad), which uses two shunt resistors and one series resistor. Both provide symmetrical, bilateral attenuation, but they have different practical advantages depending on the system impedance.

The Low Impedance Advantage of the T-pad

In a T-pad, the shunt resistor ($R_2$) is generally larger than the series resistors for low attenuation, but as attenuation increases, the shunt resistor value drops. However, compared to a Pi-pad, the T-pad’s shunt resistor remains at a higher, more practical value when designing for low characteristic impedances (like 50Ω).

Conversely, in a Pi-pad, the series resistor becomes very small at high attenuations for low impedances, which can be difficult to manufacture and parasitic inductance can ruin the high-frequency performance. Therefore:

• Use a T-pad for low impedance systems (e.g., 50Ω RF, 8Ω audio).
• Use a Pi-pad for high impedance systems (e.g., 600Ω audio, high-impedance video).

The Asymmetrical T-pad

While the symmetrical T-pad is the industry standard, it is possible to design an asymmetrical T-pad to match two unequal impedances ($Z_S \neq Z_L$), much like the L-pad.

The formulas for an asymmetrical T-pad are significantly more complex, as they must satisfy three conditions simultaneously:

1. Input impedance equals $Z_S$.
2. Output impedance equals $Z_L$.
3. The voltage ratio equals the desired attenuation factor $K$.

However, in modern engineering, if unequal impedance matching is required, designers almost exclusively use the L-pad for simplicity, or they use a symmetrical T-pad combined with a separate impedance transformer. The asymmetrical T-pad is largely a theoretical exercise today.

Practical Considerations in T-pad Design

1. Power Dissipation

Attenuators dissipate power as heat. In a T-pad, the power is distributed among the three resistors. The input series resistor ($R_1$) typically dissipates the most power because it carries the full input current before it is split by the shunt resistor. When selecting resistors, ensure $R_1$ has a power rating at least 50% higher than $R_2$ and $R_3$.

2. Resistor Tolerances

The accuracy of the attenuation and the impedance match depends heavily on resistor tolerances.

• For general audio use, 5% carbon film resistors are acceptable.
• For RF and precision test equipment, 1% metal film resistors are mandatory.
• For ultra-precision applications (0.1 dB accuracy), resistors must be hand-selected or trimmed using potentiometers.

3. High-Frequency Parasitics

At radio frequencies (RF), resistors are not purely resistive. They have parasitic series inductance and parallel capacitance.

• Carbon composition resistors are often preferred for RF attenuators because they have very low parasitic inductance compared to wire-wound or thick-film resistors.
• Surface-mount (SMD) thin-film resistors are excellent for RF up to several GHz due to their tiny physical size, which minimizes parasitic effects.

4. The Balanced T-pad (H-pad)

If you are working with balanced audio lines (like XLR cables) or balanced RF transmission lines (like twin-lead), you cannot use a standard ungrounded T-pad. Instead, you use an H-pad (or balanced T-pad). The H-pad splits the series resistors into two halves, placing one in the “hot” line and one in the “cold” line, maintaining perfect electrical symmetry with respect to ground.

Practical Applications

1. RF Test and Measurement

Spectrum analyzers and network analyzers have strict maximum input power limits (often +20 dBm or +30 dBm). If you need to measure a high-power transmitter (e.g., +40 dBm), you must insert a 50Ω T-pad attenuator to protect the sensitive input mixer of the analyzer.

2. Audio Line-Level Matching

In professional audio, equipment might output a “hot” signal (+24 dBu) that overdrives the input of a consumer device (-10 dBV). A symmetrical 600Ω T-pad can be built into an adapter cable to safely reduce the level without altering the frequency response or causing impedance mismatches.

3. Oscilloscope Probes

High-voltage oscilloscope probes often contain a T-pad network inside the probe tip or the compensation box. This network reduces the voltage by a factor of 10 (20 dB) or 100 (40 dB) while maintaining a high input impedance to prevent loading the circuit under test.

4. Antenna and Transmission Line Isolation

In complex RF distribution systems, T-pad attenuators are used to isolate stages. For example, placing a 3 dB or 6 dB T-pad between a signal generator and a power amplifier prevents the amplifier’s input mismatch (VSWR) from reflecting back into the generator and pulling its frequency.

Summary and Conclusion

The T-pad attenuator is the workhorse of symmetrical, bilateral signal reduction. By utilizing two series resistors and one shunt resistor, it provides precise, frequency-independent attenuation while maintaining a perfect impedance match at both ports.

Key takeaways from this guide include:

1. Symmetry and Bilaterality: Unlike the L-pad, the T-pad is symmetrical. It presents the exact same impedance ($Z_0$) to both the source and the load, allowing signals to flow in either direction.
2. Design Formulas: The series resistors are calculated as $Z_0 \frac{K-1}{K+1}$, and the shunt resistor is $Z_0 \frac{2K}{K^2-1}$.
3. Low Impedance Preference: The T-pad topology is generally preferred over the Pi-pad for low-impedance systems (like 50Ω RF) because it yields more practical, higher-value shunt resistors.
4. Power Distribution: Power dissipation is not equal across the three resistors; the input series resistor typically handles the most heat and must be rated accordingly.
5. Broadband Performance: Because it relies entirely on resistors, the T-pad offers a perfectly flat frequency response from DC up to the limits imposed by parasitic capacitance and inductance.

Whether you are building a custom RF probe, designing a broadcast audio patch bay, or protecting a sensitive spectrum analyzer, the T-pad attenuator provides a reliable, mathematically predictable, and highly effective solution for controlled signal reduction.
